Through Entry - for length cutting and when cabling initially installed.

Available sizes :  10mm

________________________________

End Entry - for a fixed cable installation.

Available sizes  : 10mm

________________________________

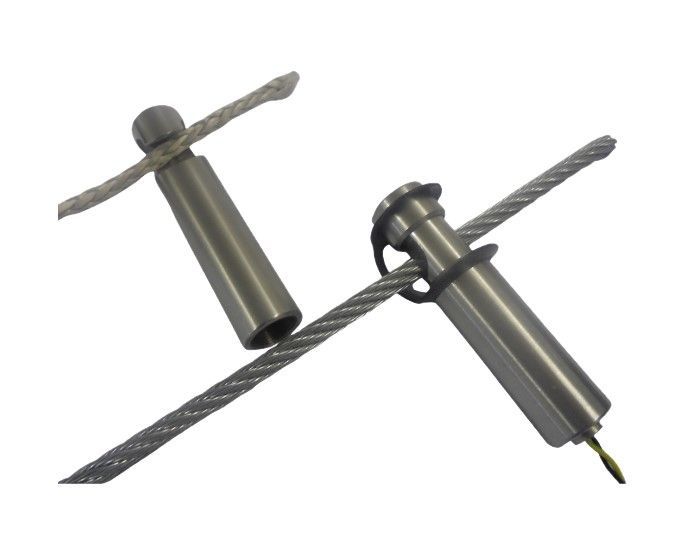

Side Entry - for a fixed cable but can also be attached at a later date.

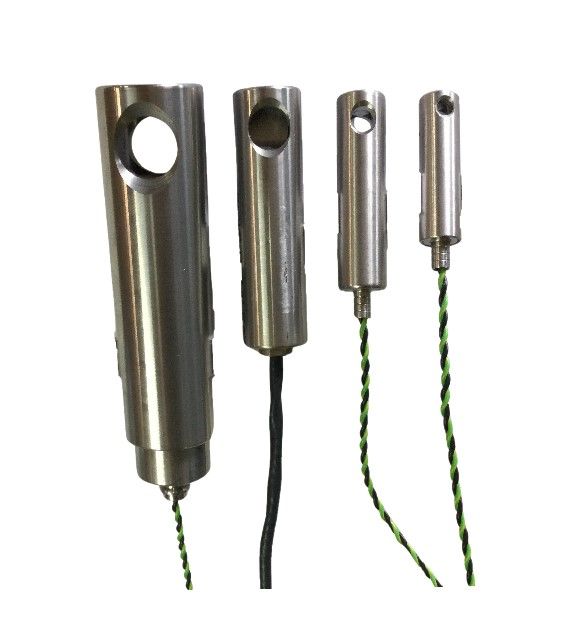

Available sizes  : 4, 5, 6, 10, 25mm

4mm - used for cables of 2,3 and 3.5mm diameter -narrow line applications such as electrical line cutting for drone payload release, emergency line severance and any other lower load applications.

5mm -used for cables of 2,3,4 and 4.5mm diameter. Useage would be the same as the smaller cutters, plus braided steel wire, armoured electrical cabling, Aramid, fibre optic and UHMWPE cables.

6mm - used for cables of 2,3,4, 5 and 5.5mm diameter. Useage the same as 4 and 5mm capabilities, plus parachute lines, fibre optic and UHMWPE cable cutting.

10mm - used for cables up to 9.5mm diameter. Capacity to cut a thicker cable as it is more powerful. Effectively used for marine line cutting i.e. deep sea activation and for floatation subsea recovery.

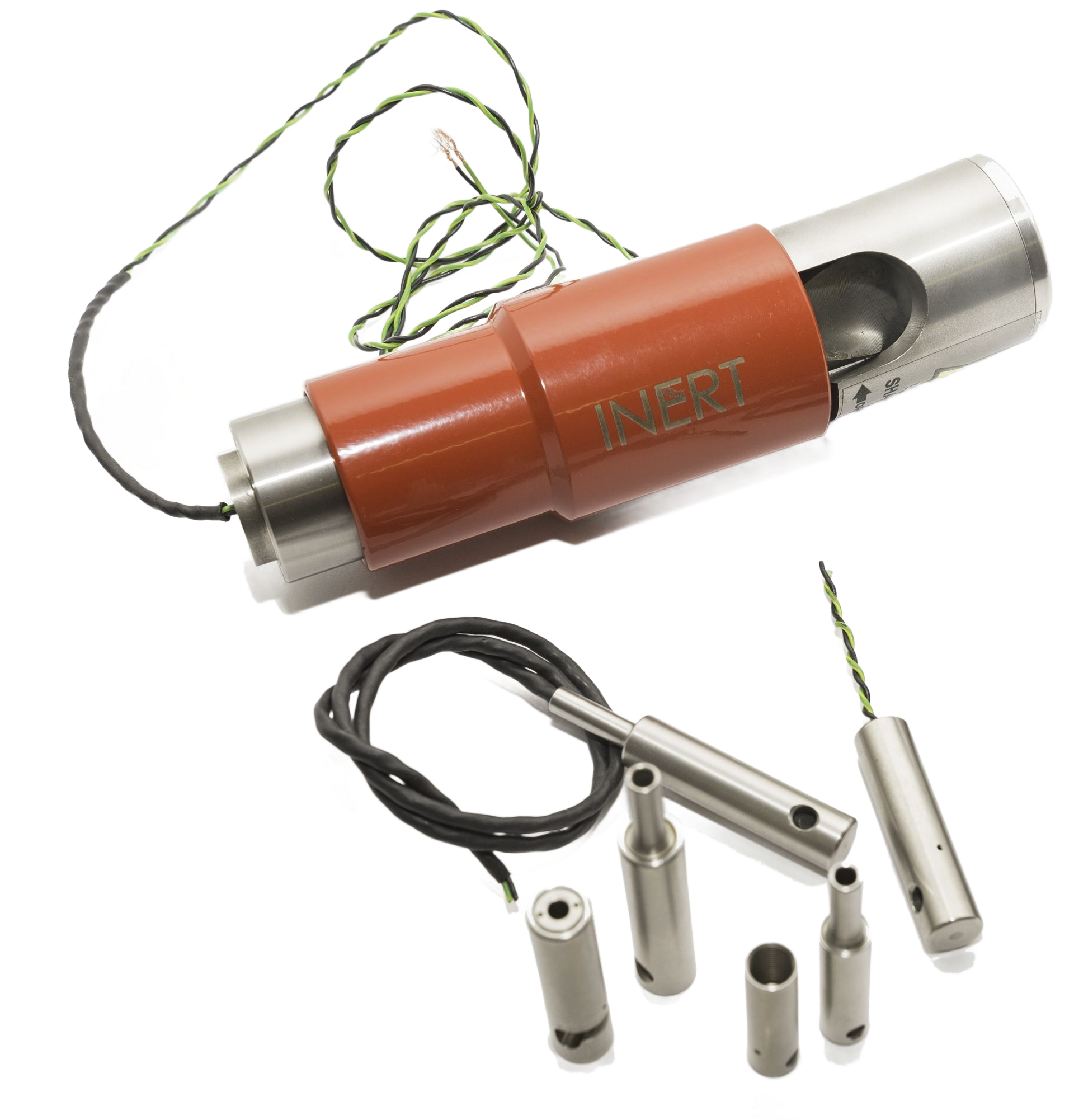

• Electrically fired.
• Milli-second action time.
• Hardened steel blade
• easily cuts dyneema rope and steel cables up to 25mm diameter.

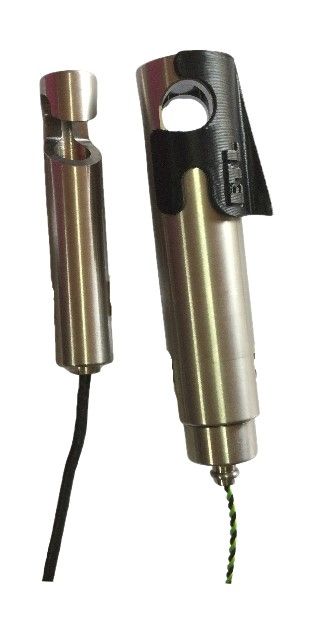

• Ultra reliable new design has side entry with retaining collar to secure target and prevent accidental release.

• Light-weight, reliable reefing cutters for parachute deployment.
• Following mechanical activation of the firing mechanism, a pyrotechnic time delay delivers a precise severance of the reefing cord for a perfectly controlled descent.
• Application specific designs are available where the activation force and time delay can be tailored to customer requirements.
